Duplex Steel

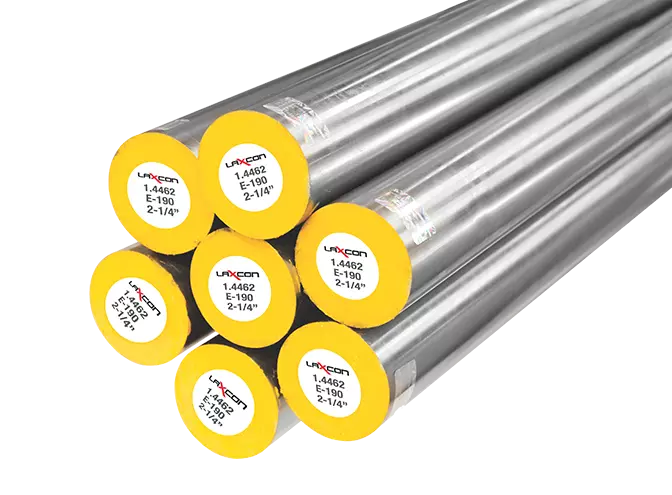

Duplex stainless steels bars have enormous hardness, making them the first choice for applications that need high strength, such as in the oil and gas industry. Duplex stainless steels are called "duplex" because they have a two-phase microstructure consisting of grains of Ferrite and Austenite stainless steel. This structure provides a unique set of benefits. Duplex 1.4462 round bar is particularly notable for its excellent properties.

Duplex steel is about twice as strong as regular austenitic or ferritic stainless steel. With higher chromium content, it is corrosion-resistant and significantly has better toughness and ductility than ferritic grades. Super duplex and other duplex grades offer enhanced performance for demanding applications. As a top duplex stainless steel manufacturer in India, we remain extremely particular about the physical and mechanical properties of our bars, including hex bar, forged bars, and other steel alloy options.

For product inquiries, please send an email to [email protected]

Bright Bars

Duplex Stainless Steel Supply conditions

Strength Duplex stainless steels are about twice as strong as regular austenitic or ferritic stainless steel.
Corrosion resistance As with all stainless steels, corrosion resistance depends mostly on the composition of the stainless steel.
The composition of this steel makes it better at resisting
corrosion.
Toughness and ductility Duplex stainless steel has significantly better toughness and ductility than ferritic grades.

Duplex Stainless Steel Applications

Structural Design Components
Storage and Exchange Equipment(High Pressure, Saline applications)
Heat Exchanger
Aerospace, Pulp and Paper Industry
Duplex stainless steels are called “duplex” because they have a two-phase micro-structure consisting of phases of ferritic and austenitic stainless steel.
This structure provides a unique set of benefits.

PREN Values

Steel grade 1.4307 1.4404 1.4462 2205
PREN 18 24 31 35

Duplex Stainless Steel Grades

Grade No. Yield Strength (Rp 0.2%) (Min) UTS (Mpa)(Min) UTS (Mpa)(Max) % Elongation (Min) % Reduction area (Min) Hardness (BHN) (Max)
1.4462 450 650 880 25 – 270
UNS S31803 448 620 – 25 – 290
UNS S32205 450 655 – 25 – 290
1.4362 400 600 830 25 – 260
1.4460 450 620 880 20 – 260

Chemical Composition

Standard Grade C % Si % Mn % P % S % Cr % Mo % Ni % Cu % N2 %
ASTM A 182:2018 F-51 0.03 1 2 0.03 0.02 21-23 2.5-3.5 4.5-6.5   0.08-0.2
ASTM A 182:2018 F-60 0.03 1 2 0.03 0.02 22-23 3.0-3.5 4.5-6.5   0.14-0.2
ASTM A 182:2018 F-53 0.03 0.8 1.2 0.035 0.02 24-26 3-5 6.0-8.0 0.5 0.24-0.32
ASTM A 276:2017 UNS S32205 0.03 1 2 0.03 0.02 22-23 3.0-3.5 4.5-6.5   0.14-0.2
ASTM A 276:2017 UNS S31803 0.03 1 2 0.03 0.02 21-23 2.5-3.5 4.5-6.5   0.08-0.20
ASTM A 240:2018 UNS S32750 0.03 0.8 1.2 0.035 0.02 24-26 3-5 6.0-8.0 0.5 0.24-0.32
DIN EN 10088-3 : 2014 1.4462 0.03 1 2 0.035 0.015 21-23 2.5-3.5 4.5-6.5   0.1-0.22
DIN EN 10088-3 : 2014 1.4460 0.05 1 2 0.035 0.03 25-28 1.3-2.0 4.5-6.5   0.05-0.2
EN 10095 : 1999 1.4821 0.1-0.2 0.8-1.5 2 0.04 0.015 24.5-26.5   3.5-5.5   0.11
DIN EN 10088-3 :2014 1.4410 0.03 1 2 0.035 0.015 24-26 3.0-4.5 6.0-8.0   0.24-0.35
EN 10028-7 : 2000 1.4362 0.03 1.0 2.0 0.035 0.015 22-24.5 0.1-0.6 3.5-5.5 0.1-0.6 0.05-0.2



For product inquiries, please send an email to [email protected]
