HRAP Equal Angles

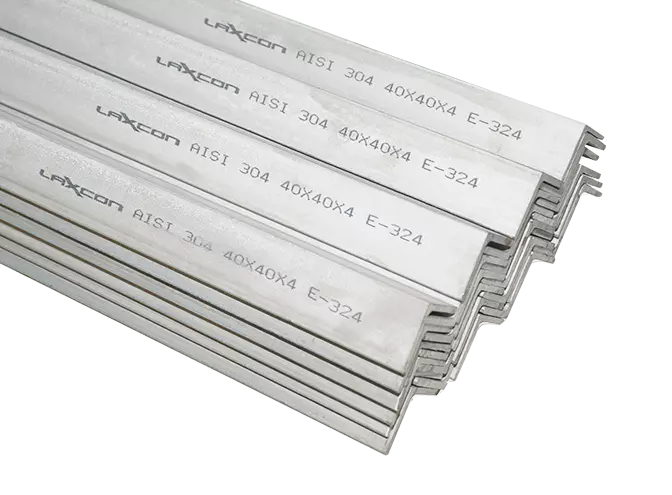

Stainless steel HRAP equal angle  for applications leaning towards structural and framework applications. SS HRAP Equal angle is used in metal construction, industrial and agricultural applications. Various pieces of metal frames, metal brackets, steel chassis, components and parts of machinery can be made from equal angles. Equal angles are available with various types of bar end finishes for example-chamfered ends and plain ends without burrs or sharp edges. They go through hot rolling, solution annealing and pickling to improve their material properties. As one of the best stainless steel equal angle manufacturers in India, we are always particular about the chemical and mechanical properties of our bars. Our reputation as a top stainless steel HRAP equal angles manufacturer in India has been unmatched. And, our name and stainless steel angle bar India go hand in hand across the globe. For any inquiries or additional details, please contact us. We are committed to excellence in steel production and ensuring high-quality products for all our customers.

Bright Bars

Supply conditions

Length Up to 6.4 meters
Tolerances ASTM A484, EN10056
Heat treatment process Hot rolled, Solution Annealed & Pickled (HRAP)
  Shot Blasting as per customer’s request
Grit polish As per customer’s request
Bars End Finish Deburred Ends, Plain Ends without Burrs or Sharp Edges
Specifications As per EN, DIN, JIS, ASTM, BS, ASME, etc.



Size Range

Width Size (mm) Width Size (inches) Thickness (mm / inches)
- - 3 mm 4 mm 5 mm 6 mm 7 mm 8 mm 9 mm 10 mm 12 mm 13 mm 15 mm
- - 1/8" 1/6" 3/16" 1/4" 9/32" 5/16" 3/8" 2/5" 1/2" 1/2" 5/8"
20 X 20 3/4" X 3/4" tick
25 X 25 1" X 1" tick tick tick tick
30 X 30 1-1/6" X 1-1/6" tick tick tick
32 X 32 1-1/4" X 1-1/4" tick tick tick tick
35 X 35 1-3/8" X 1-3/8" tick tick tick
38.1 X 38.1 1-1/2" X 1-1/2" tick   tick tick
40 X 40 1-4/7" X 1-4/7" tick tick tick tick
45 X 45 1-7/9" X 1-7/9" tick tick tick tick
50 X 50 2" X 2" tick tick tick tick tick tick tick tick
60 X 60 2-3/8" X 2-3/8"     tick tick tick tick tick
63 X 63 2-1/2" X 2-1/2"     tick tick tick tick tick
65 X 65 2-5/9" X 2-5/9"     tick tick tick tick tick
70 X 70 2-3/4" X 2-3/4"       tick tick tick tick tick
75 X 75 3" X 3"     tick tick tick tick tick tick tick
80 X 80 3-1/8" X 3-1/8"       tick tick tick tick tick
90 X 90 3-1/2" X 3-1/2"       tick     tick
100 X 100 4" X 4"       tick   tick tick tick
120 X 120 4-3/4" X 4-3/4"               tick tick tick tick
125 X 125 4-15/16"X4-15/16"               tick tick
127 X 127 5" X 5"             tick   tick



Inkjet printing as per grade & size
Free from Radioactive elements, Mercury & Lead contamination
Grade confirmation through PMI testing with Handheld Spectrometers
